Spring boot 与 Sentinel

Quick Start

运行控制台

github 地址
https://github.com/alibaba/Sentinel

文档地址：
https://github.com/alibaba/Sentinel/wiki/

下载 sentinel-dashboard-1.8.1.jar
运行 java -jar sentinel-dashboard-1.8.1.jar
访问web地址：http://localhost:8080 默认用户名和密码都是sentinel/sentinel，然后进入首页

项目添加依赖

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
    <version>2.1.1.RELEASE</version>
</dependency>

添加配置

server.port=8081
# sentinel 配置
spring.application.name=hitol-sentinel
spring.cloud.sentinel.transport.dashboard=localhost:8080
spring.cloud.sentinel.transport.heartbeat-interval-ms=500

编写一个 controller 用于测试

@RestController
public class SentinelController {

	@RequestMapping("/")
	public String sentinel() {
		return "sentinel ....";
	}
}

浏览器访问 localhost:8081,多刷新几次，控制台实时监控

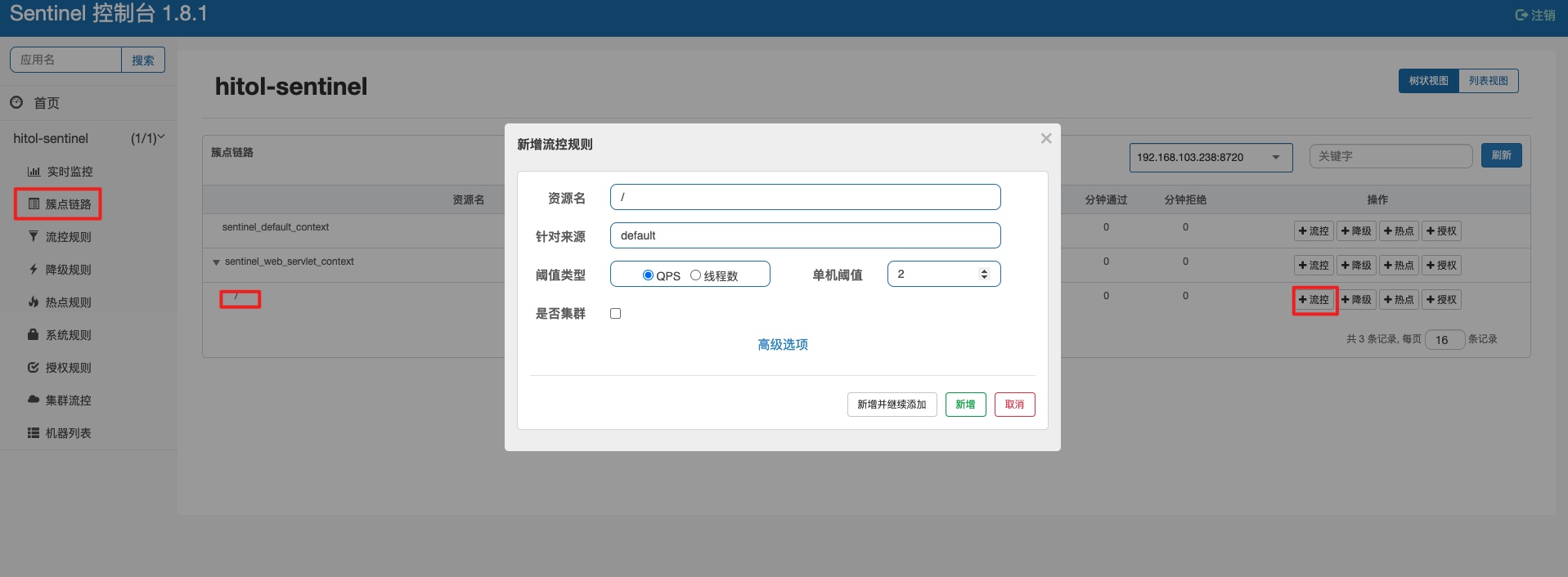

流量控制

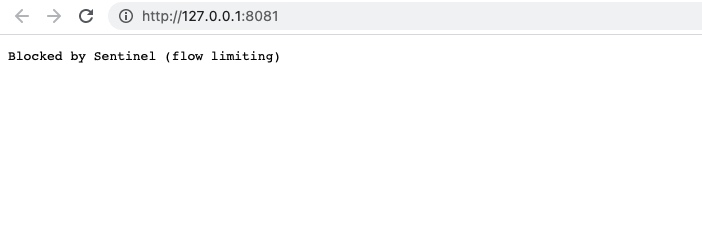

添加规则后多刷新几次接口

Dubbo 与 Sentinel

服务提供者修改

增加依赖

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
    <version>2.1.1.RELEASE</version>
</dependency>

<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-apache-dubbo-adapter</artifactId>
    <version>1.7.0</version>
</dependency>

<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-transport-simple-http</artifactId>
    <version>1.7.1</version>
</dependency>

修改配置

server:
  port: 8070
spring:
  application:
    name: service-provider
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
        group: test
        namespace: fed092ce-956c-4792-977c-affc5d8f1dc7

    sentinel:
      transport:
        port: 8070
        dashboard: localhost:8080

服务消费者修改

增加依赖

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
    <version>2.1.1.RELEASE</version>
</dependency>

<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-apache-dubbo-adapter</artifactId>
    <version>1.7.0</version>
</dependency>

因为消费者是通过 http 调用的，所以比服务提供者少了一个依赖

修改配置

server:
  port: 8071
spring:
  application:
    name: service-consumer
  cloud:
    nacos:
      discovery:
        group: test
        namespace: fed092ce-956c-4792-977c-affc5d8f1dc7
        server-addr: 127.0.0.1:8848
    sentinel:
      transport:
        port: 8071
        dashboard: localhost:8080

sentinel.transport.port 跟程序运行的 port 一致才行。

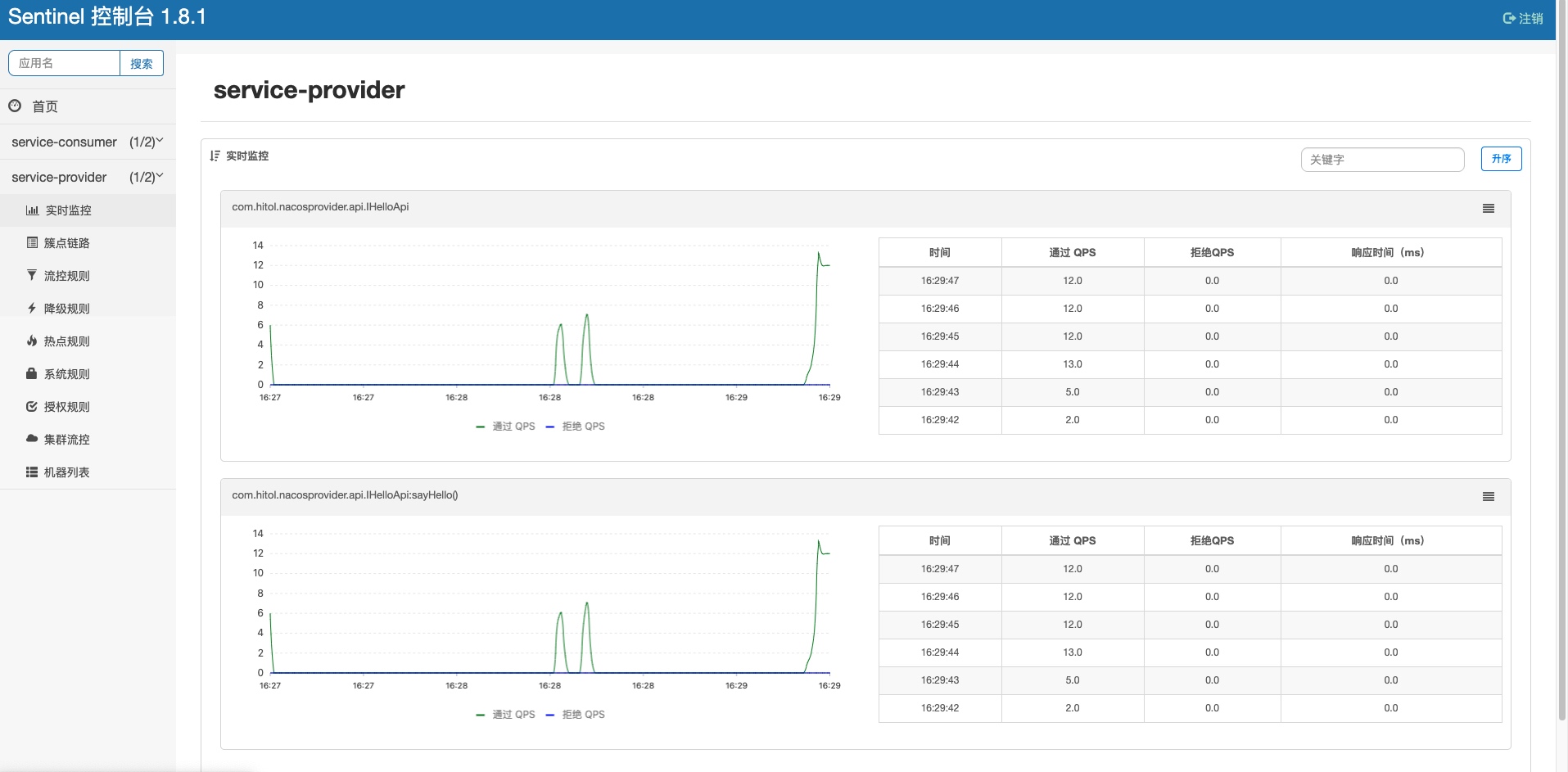

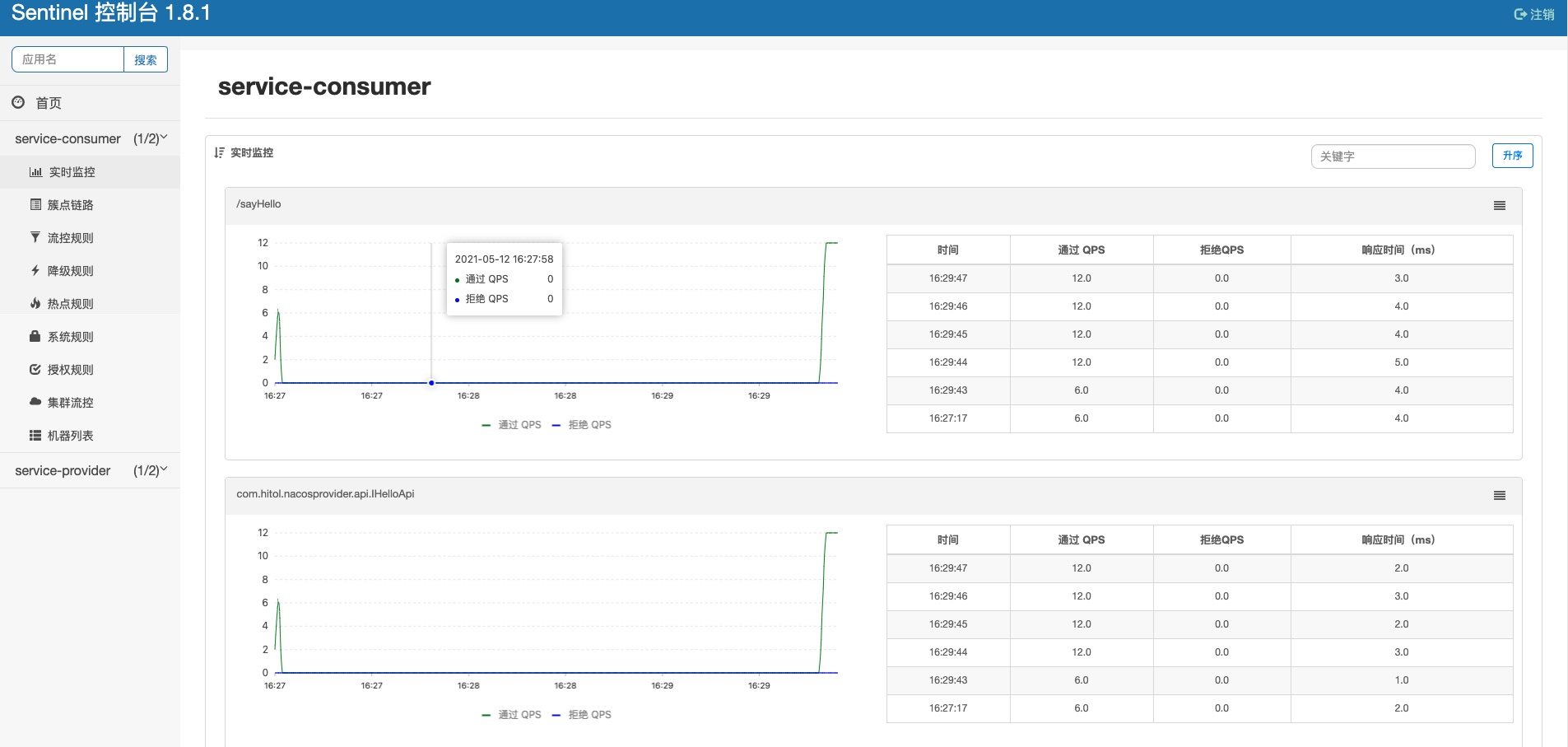

运行结果

添加完依赖，修改完配置，启动即可。
调用 服务消费者提供的 api，多刷新几次
